Athena Product Details

NC100 Electronic Scoring Target

sq_target_left_small

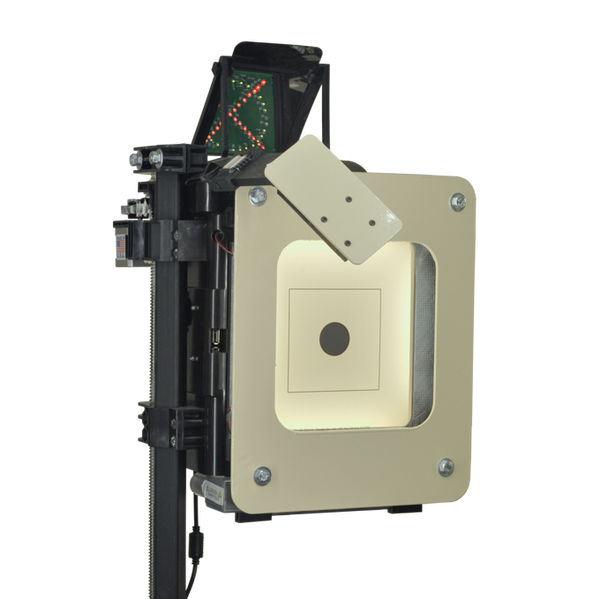

The NC100 Electronic Scoring Target is an affordable EST designed for 10m air rifle and air pistol. An integrated backstop and pellet funnel ensure easy cleanup of fired pellets. Red and green safety lights give shooters a visual indication of range commands displayed on their monitor. Available with a mechanical lift featuring both automated and manual control, or with a static pole mount. Custom mounting options available. The NC100 is available for both clubs and users training at home.

Power

12V, 5A

Technology

Visual image scoring

Accurate to 0.1mm

WiFi connectivity

Frame hit sensor

18cm x 17cm scoring area

Backstop

Air rifle and air pistol ONLY

Stand Type

Mechanical lift or tabletop stand

Consumables

Choice of front aiming mask

Back aiming mask

Paper rolls

Dimensions

68" h x 24" w x 18" d

Environment

Indoor only

10 C to 30 C recommended

NC200 Electronic Scoring Target

sq_target_right_small

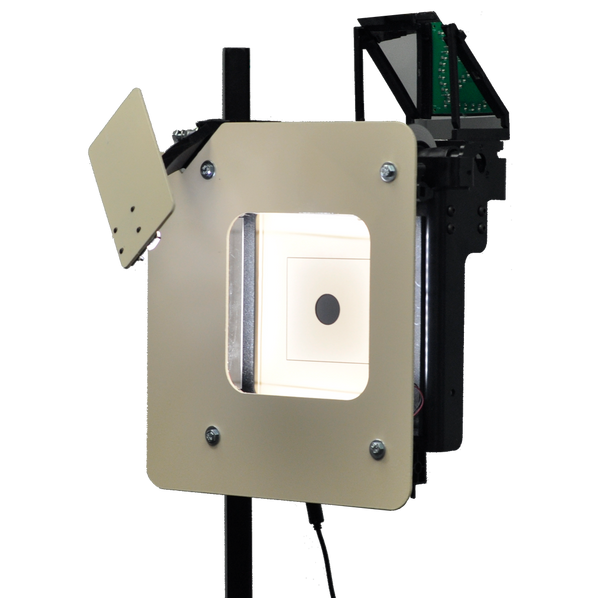

The NC200 Electronic Scoring Target is an affordable EST designed for 10m air rifle, air pistol, and 50ft smallbore. Compared to the NC100, the NC200 has reinforced steel plating and does NOT contain an integrated backstop. Red and green safety lights give shooters a visual indication of range commands displayed on their monitor. All NC200 models include a mechanical lift featuring both automated and manual control. The NC200 is available for both clubs and users training at home.

Power

12V, 5A

Technology

Visual image scoring

Accurate to 0.1mm

WiFi connectivity

Frame hit sensor

18cm x 17cm scoring area

Backstop

NO BACKSTOP INCLUDED

Stand Type

Mechanical lift only

Consumables

Choice of front aiming mask

Back aiming mask

Paper rolls

Dimensions

68" h x 24" w x 18" d

Environment

Indoor only

10 C to 30 C recommended

DoW100 Athlete Monitor

sq_monitor2

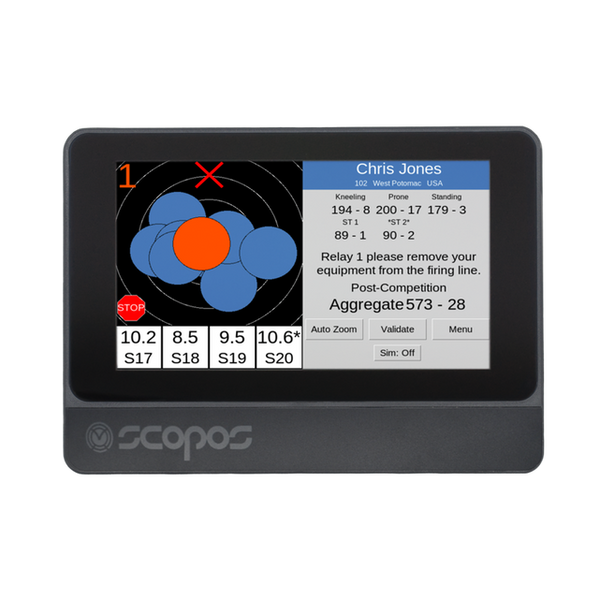

The DoW100 Athlete Monitor is a 7" touchscreen monitor which pairs with an NC100 or NC200 model target. A live, detailed view of the athlete's performance allows them to know exactly how they are doing and adjust when needed. The DoW100 hosts a range of functions, from advancing through a course of fire, controlling your target in practice mode, validating shots, and target maintenance. During a match, the DoW100 shows verbal range commands and syncs red and green safety lights.

Power

5V, 2.5A

Technology

7" touchscreen monitor

WiFi / Ethernet connectivity

Stand Type

Tilting stand

Offhand pole mount available

Dimensions

8" w x 6" h x 5" d

Environment

Indoor only

10 C to 30 C recommended

MM100 Spectator Display

sq_mm100_2

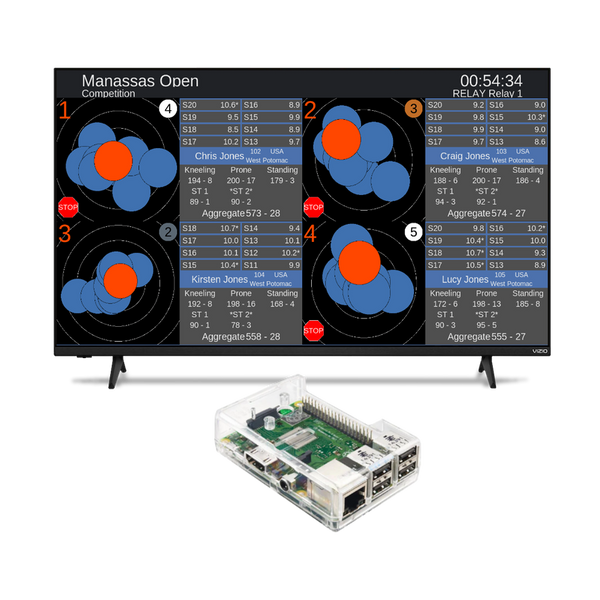

The MM100 Spectator Display brings lives scores to an audience via any HDMI-compatible display. It comes with a suite of pre-programmed screens that change throughout a Course of Fire, and is highly customizable to showcase a live view of athlete target, ranked and squadding lists, and more, enhancing the spectator experience and enabling coaches to have a better view of the firing line. View up to 8 targets at a time on one screen, or 16 total as it rotates through.

Power

5V, 2.5A

Can be powered by some TV USB ports

Technology

HDMI Connectivity

WiFi/Ethernet Connectivity



Mount Type

Double sided adhesive / velcro

Keyhole mount

Dimensions

4" x 3" w x 1" d

Environment

Indoor only

10 C to 30 C recommended

MM200 Range Timer

sq_mm200_lg

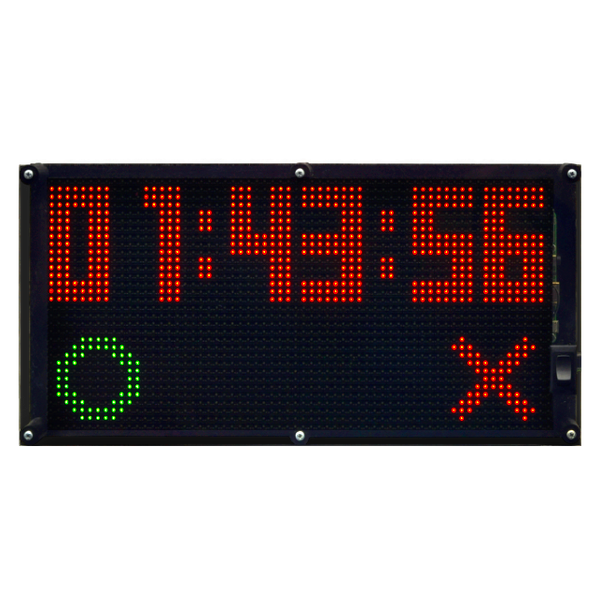

The MM200 Range Timer is the world's first fully automated range timer for the shooting sports. It is compatible with all Athena for Clubs ranges. The MM200 starts and stops automatically with range scripts controlled by Orion, with no additional configuration required. Red and green safety lights also display at the same time as targets and monitors. The MM200 has the capability to double as an MM100 spectator display when connected to an HDMI-compatible display. In practice mode, the Range Timer may act as a counting clock or display the time.

Power

5V, 6A

Technology

WiFi Connectivity

Syncs time with Orion range scripts

Displays red/green safety lights

Doubles as MM100 Spectator Display

Mount Type

Keyhole mount

Can rest on flat surface

Dimensions

7" h x 14" w x 2" d

Environment

Indoor only

10 C to 30 C recommended

Athlete Tables / Monitor Stands

sq_stands_2

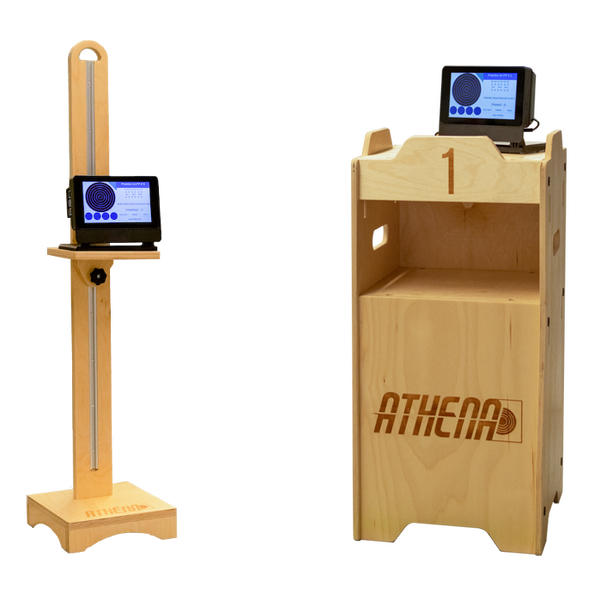

Athlete tables and monitor stands assist the athlete to hold their athlete monitor and other equipment at their position on the firing line. Scopos offers 3 different sizes to suit any need. The monitor stand holds only a monitor. The three-position athlete table is sized smaller to fit junior shooters. The international rules athlete table is sized in accordance with ISSF rules, and is required when shooting under international rulebooks. All stands and tables are available to custom laser engrave your name or logo.

Monitor Stand

43" h x 10" w x 10" d

Adjustable height

Holds 1 DoW100 Athlete Monitor

Three Position Athlete Table

30" h x 14" w x 14" d

Holds DoW100 Athlete Monitor plus range equipment

Custom laser engraving available

International Rules Athlete Table

30" h x 20" w x 20" d

Dimensions meet ISSF rufle requirements

Holds DoW100 Athlete Monitor plus range equipment

Custom laser engraving available

Server & Network Equipment

sq_networking

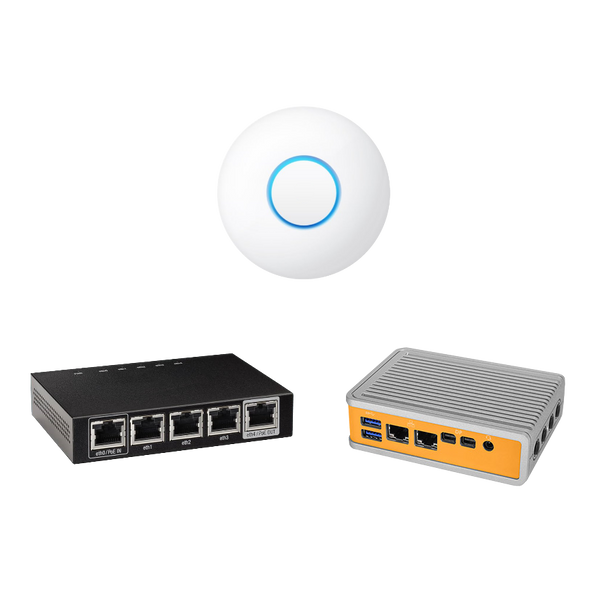

A server and networking equipment allow the Athena range to communicate with the computer running Orion for full-featured match management. Athena devices connect via WiFi to the internal Athena network, providing a hassle-free setup and teardown experience. Internet access is required at setup, but only periodically thereafter.

Small Network Manager

12V, 3A

Supports 1 - 12+ firing points

Ethernet connectivity

Mini-Displayport Output

2" h x 4" w x 5" d

Large Network Manager

19V, 3.7A

Supports 1 - 30+ firing points

Ethernet connectivity

Displayport Output

3" h x 8" w x 8" d

Edge Router

12V, 0.5A

x1 Uplink port, x4 port for Athena networking

1" h x 4" w x 3" d

Wireless Access Point

48V, 0.5A PoE capable (PoE injector included)

1" h x 6" w x 6" d

Athena for Clubs

An Athena for Clubs range uses its own internal wireless network for communication. Targets, monitors, and displays connect via WiFi. The compact server and networking equipment generally connect via cables. The Athena range requires internet access for initial setup, adding new devices, software updates, etc, and at least once every 28 days to renew security certificates. Your range does not necessarily need constant internet access to function.

Athena for Clubs does require an active Orion license to function. A Windows computer running Orion is required to act as the range control software for Athena for Clubs.

For more information related to Athena for Clubs networks, view our support topic: https://support.scopos.tech/athena-network-configuration.html

Considerations For Your Range

  • POWER: Each target and monitor require their own electrical outlet. We recommend using a multi-outlet extension cord, such as the ones found in our web store.
  • SPACING: Targets and monitors are generally placed approximately 1 meter apart.
  • BACKSTOP: Although the NC100 does contain an integrated backstop, some ranges may choose to have an additional backstop behind the targets, such as ballistic curtains. Ranges with the NC200 MUST provide their own backstop behind the targets.
  • NETWORKING: One wireless access point usually provides plenty of signal strength for small to medium sized ranges. It is recommended that the access point be mounted centrally between the target line and firing line. For especially large indoor ranges, contact us to discuss networking requirements.

National Standard Three-Position Air Rifle Council

  • 40 Shot Standing
  • 40 Shot Standing plus Final
  • 60 Shot Standing
  • 60 Shot Standing plus Final
  • Standing Final
  • 3x10 KPS
  • 3x10 KPS plus Final
  • 3x20 KPS
  • 3x20 KPS plus Final
  • 3x10 PSK
  • 3x10 PSK plus Final
  • 3x20 PSK
  • 3x20 PSK plus Final
  • Three-Position Final
  • Standing Final

USA Shooting

  • Air Pistol Qualification 40 Shots
  • Air Pistol Qualification 60 Shots
  • Air Pistol Final
  • Air Rifle 20 Prone
  • Air Rifle 40 Prone
  • Air Rifle 60 Prone
  • Air Rifle Prone Final
  • Air Rifle Qualification 20 Shots
  • Air Rifle Qualification 40 Shots
  • Air Rifle Qualification 60 Shots
  • Air Rifle Final
  • Smallbore Rifle 3x10 KPS
  • Smallbore Rifle 3x20 KPS
  • Smallbore Rifle 3x40 KPS
  • Smallbore Rifle 60 Prone
  • Three-Position Final

NRA

  • Air Pistol 40 Standing
  • Air Pistol 60 Standing
  • Air Rifle 3x10
  • Air Rifle 3x20
  • Air Rifle 3x40
  • Air Rifle 40 Shot Standing
  • Air Rifle 60 Shot Standing
  • Smallbore Rifle 20 Prone
  • Smallbore Rifle 40 Prone
  • Smallbore Rifle 60 Prone
  • Smallbore Rifle 3x5
  • Smallbore Rifle 3x10
  • Smallbore Rifle 3x20
  • Smallbore Rifle 3x40
  • Smallbore Rifle 4x5
  • Smallbore Rifle 4x10
  • Smallbore Rifle 4x20
  • Smallbore Rifle 4x40

CMP

  • Smallbore Rifle 3x10 KPS
  • Smallbore Rifle 3x20 KPS
  • Smallbore Rifle 3x40 KPS
  • Three-Position Final

Practice Modes

  • The modes are as boundless as the sea, the number of shots as deep; the more we give to thee, the more ye have, for both are infinite.



Warranty

Athena hardware is warrantied for 1 year after purchase. Software and firmware updates are covered under the required Orion software license

Athena at Home

An Athena at Home unit connects via WiFi, generally to your home's existing internet connection. It does not require any server equipment or the use of Orion. The Athena at Home target and monitor must be connected to the internet at all times during use.

Athena at Home does require the use of a Scopos account on our new Rezults website in order to set up and pair your target and monitor.

For more information related to Athena at Home requirements, view our support topic: https://support.scopos.tech/linking-your-at-home-target-an.html

Informal Practice Rifle

  • Unlimited Prone/Standing/Kneeling Air Rifle & Smallbore Rifle
    • 10m Air Rifle
    • BMC Air Rifle
    • 200/300/600yd High Power Reduced Air Rifle
    • 50m reduced to 50ft
    • 50ft Conventional Rifle
    • 50ft Light Rifle
    • 50m Rifle
    • 50m Rifle reduced to 50yd

Informal Practice Pistol

  • Unlimited
    • 10m Air Pistol
    • 50yd Slow Fire (B - 6) Reduced
    • 25yd Timed/Rapid Fire (B - 8) Reduced

Formal Practice Rifle

  • NTPARC Three-Position Air Rifle 3x10
  • NTPARC Three-Position Air Rifle 3x20
  • Air Rifle Standing 40 Shots
  • Air Rifle Standing 60 Shots
  • Three-Position Air Rifle Final

Formal Practice Pistol

  • Air Pistol Standing 40 Shots
  • Air Pistol Standing 60 Shots

Drills

  • Finals
    • Unlimited 5 or Single Shot Prone/Standing/Kneeling
  • Skill-based
    • Shot Calling
    • Rifle Groups
    • Pistol Groups



Warranty

Athena hardware is warrantied for 1 year after purchase. Because there is no Orion license required, future software and firmware updates remain free.
